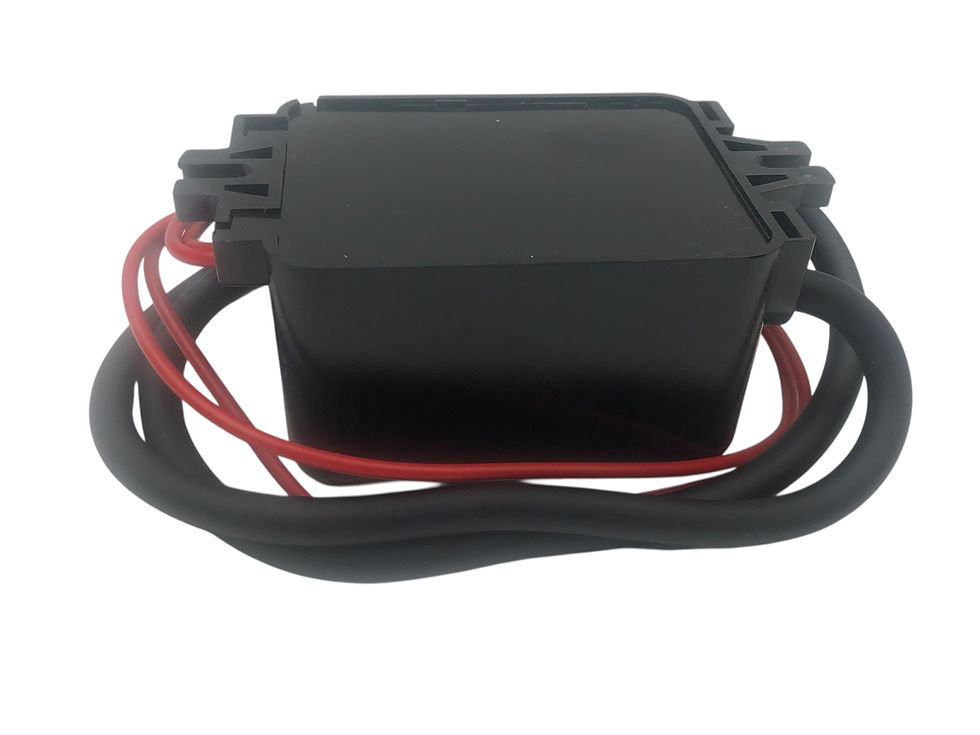

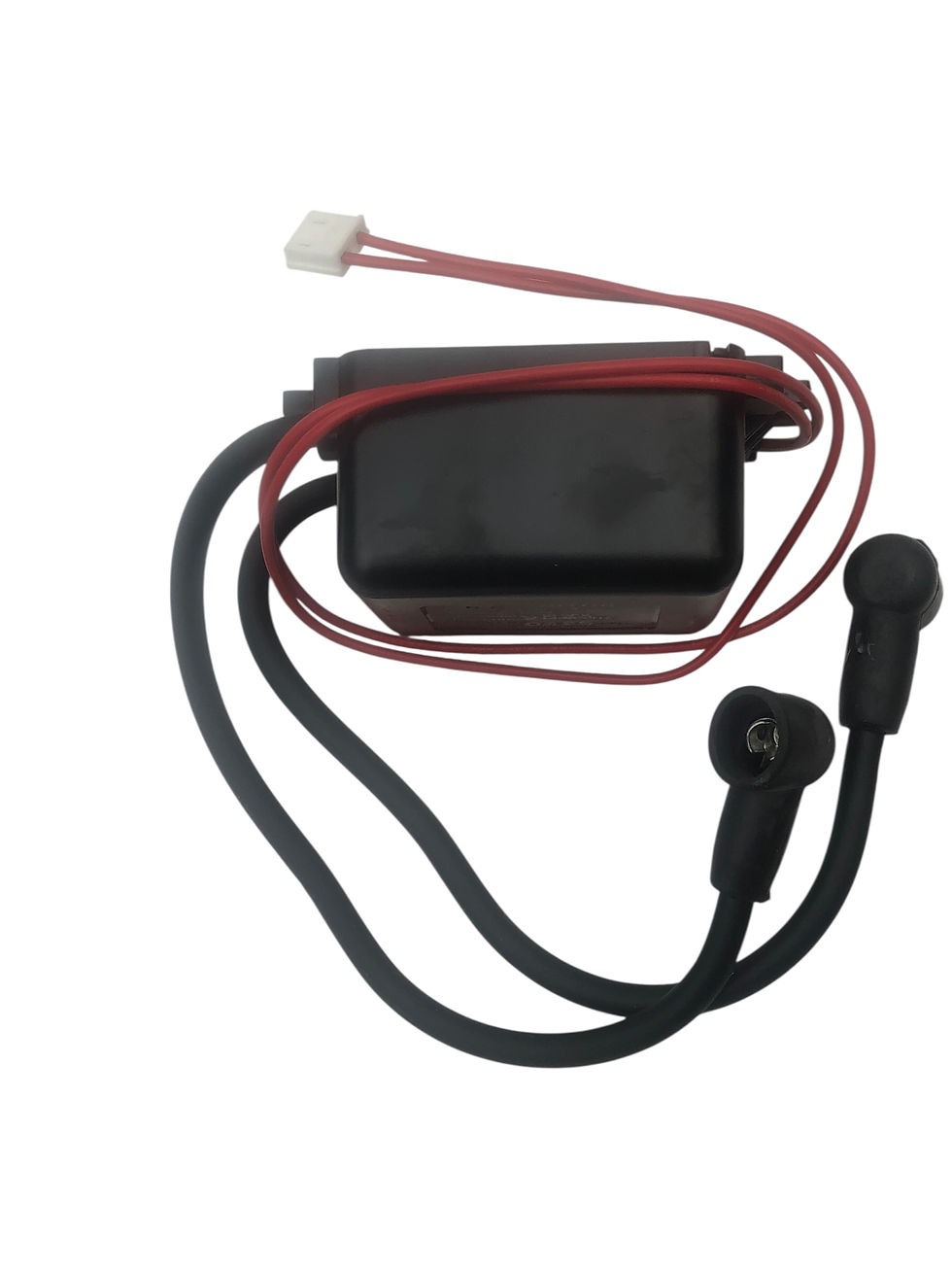

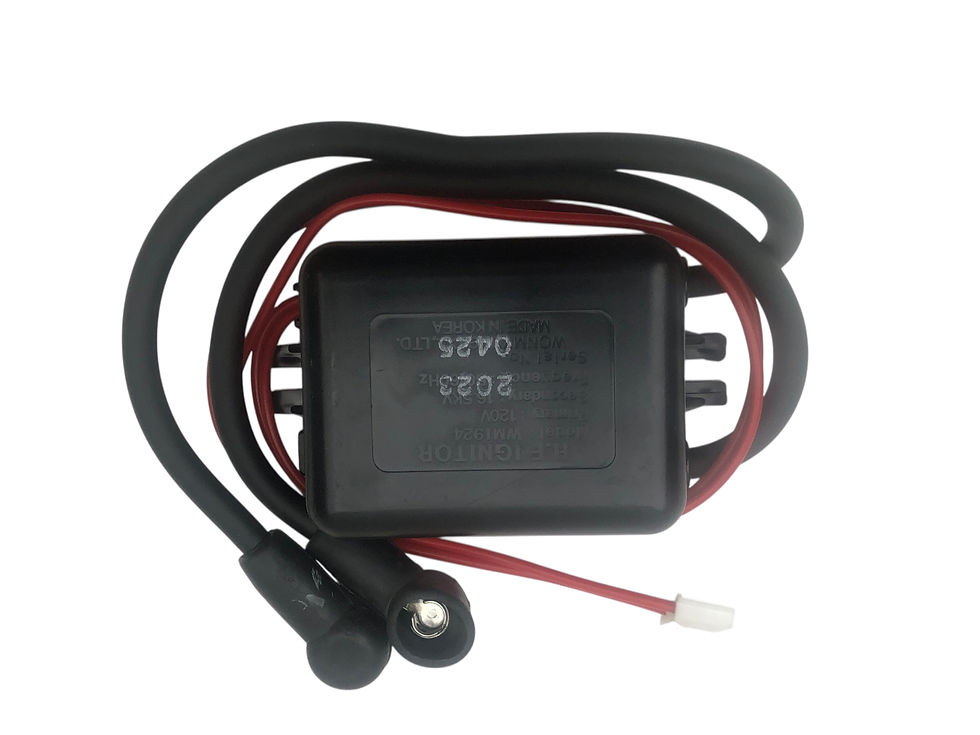

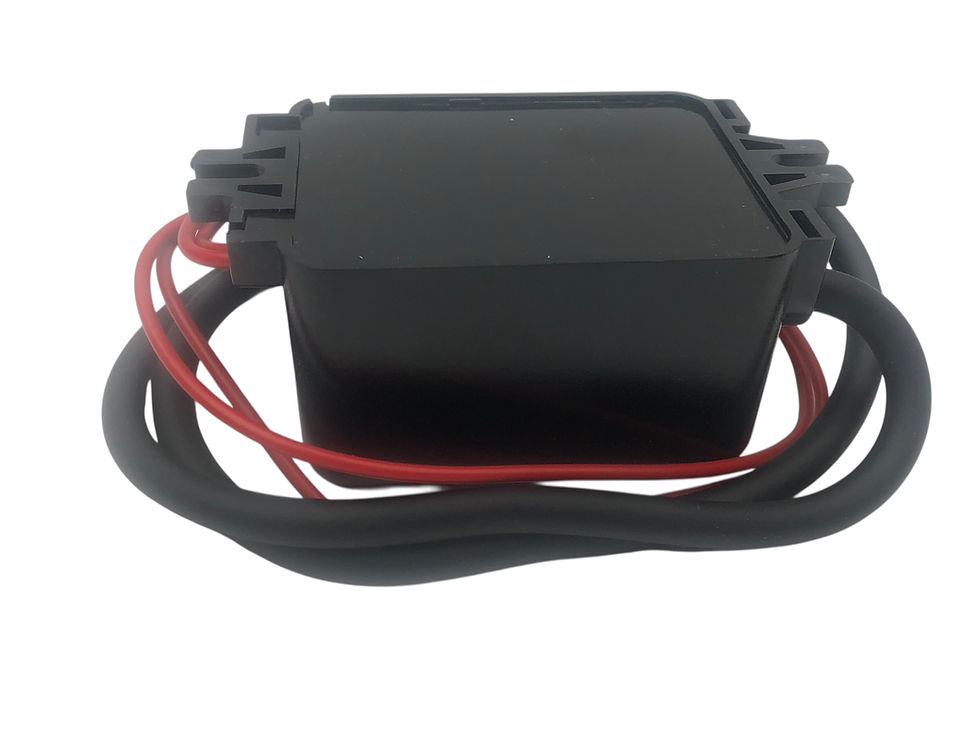

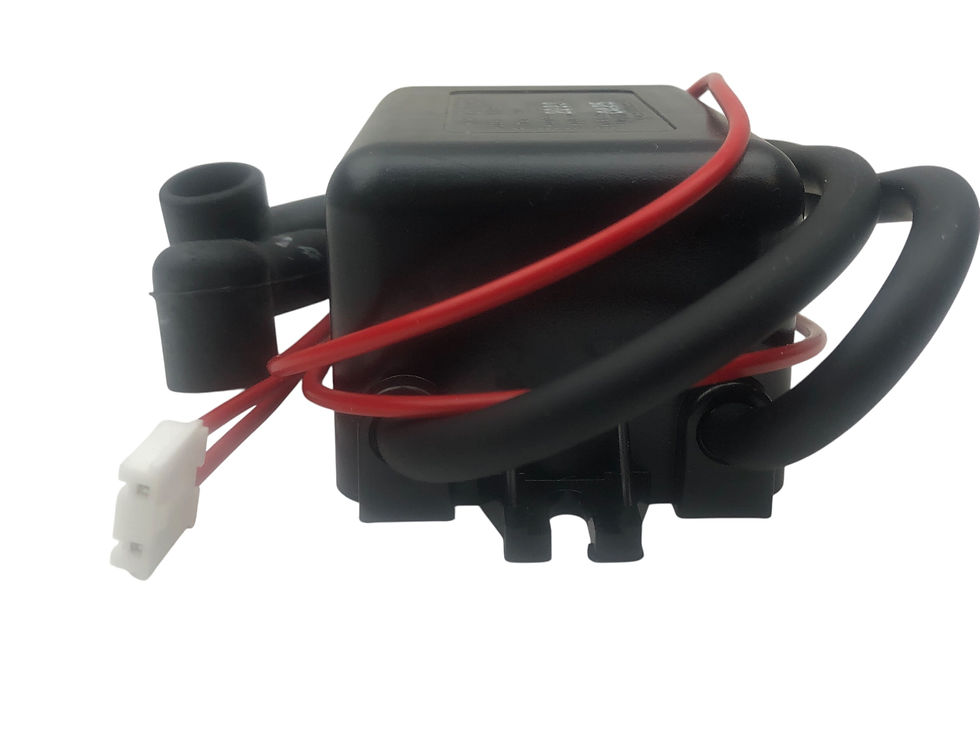

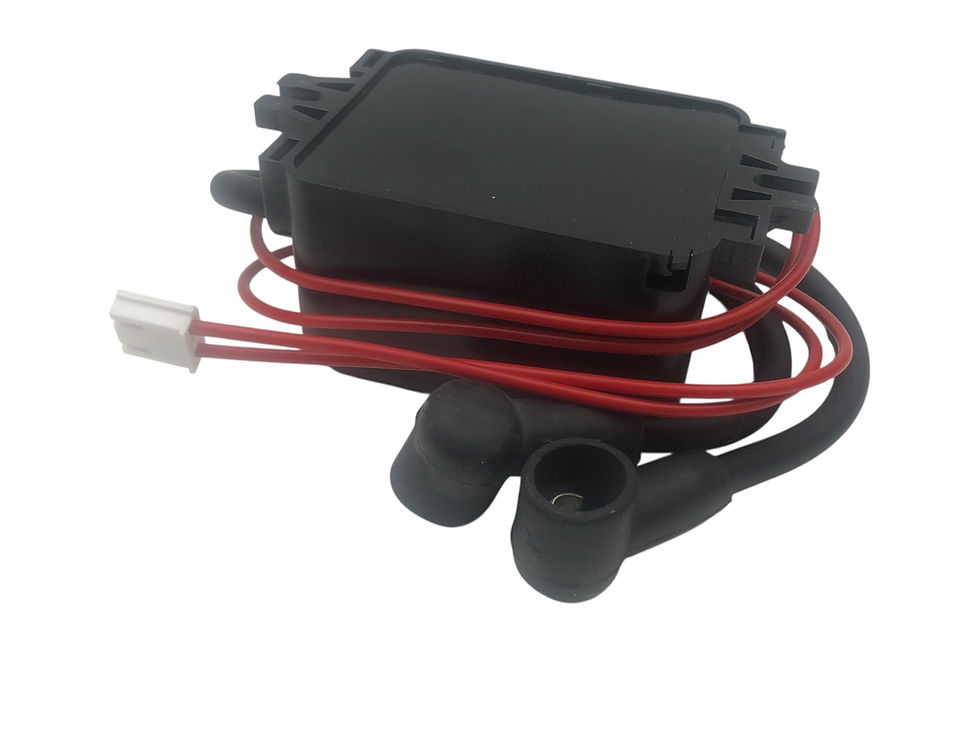

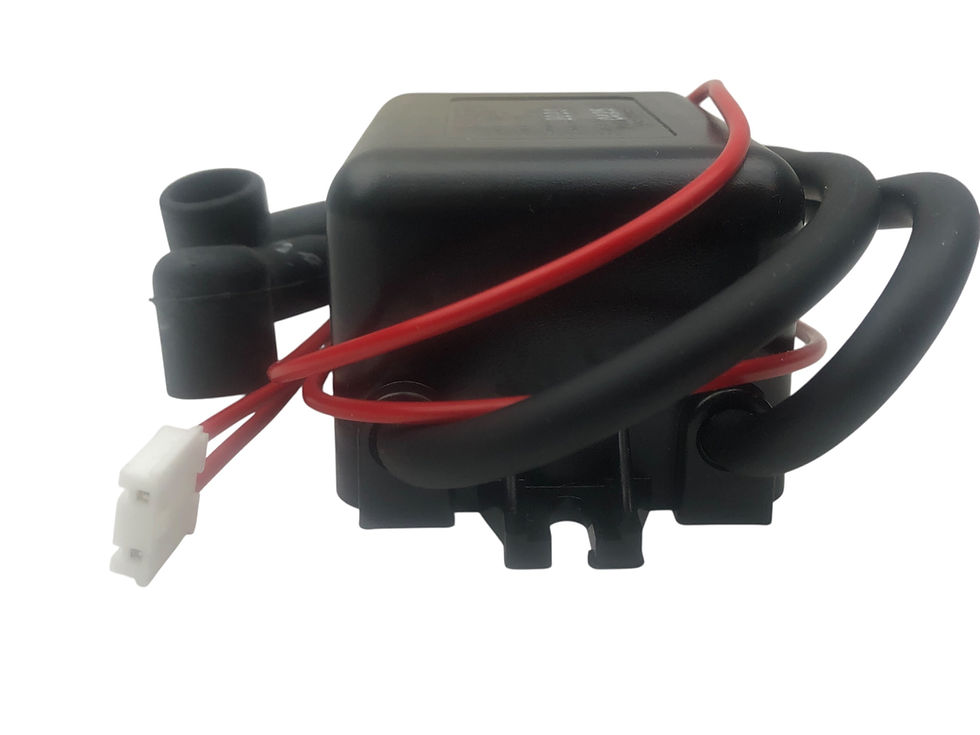

21-1501 Ignition Transformer WMI924 Series for Portable Kerosene Heaters

This is NOT a part for a Monitor or Laser Brand Heater

We do not work on these heaters but we can order this part if you need it.  PLEASE VERIFY THAT THIS IS THE CORRECT PART FOR YOUR HEATER.  We copied and included the information that we can find but we are not able to verify this for you.

The 21-1501 Ignitor Assembly is the H.F Ignitor Model Series WMI924 ignition module with insulated secondary spark plug leads used to create continuous ignition for combustion to occur during operation.

The 21-1501 Ignitor Assembly ignition device was used for portable kerosene heaters made for Dayton, Master, Heat Hog, Remington, Black and Decker, Stanley, and other multiple brands of portable construction heaters.

The 21-1501 Ignitor Assembly is one of several different ignition devices used for portable kerosene heaters made for Dayton, Master, Heat Hog, Remington, Black and Decker, Stanley, and multiple other brands of portable construction heaters.

21-1501 Specifications:
Model Number WMI924 H.F. Ignitor
​Primary Voltage AC 120Volts 50/60Hz
​Primary Leads: 16 inch 2 pin connector with Blue and Red leads
​Secondary Voltage 16.5 KV o-p
​Secondary Leads: 2 15-inch Black High Temperature spark plug leads.
Made in Korea
The 21-1501 Ignitor Transformer WMI924 Series Dual Wire Ignition Module MAY HAVE been used on:

Pinnacle Pro-Temp Models:
PT-45-KFA
PT-70T-KFA
PT-125T-KFA
PT-175T-KFA
Pinnacle Heat-Hog (Remington) Models:
HS-45-KFA
HS-70T-KFA
HS-125T-KFA
HS-175T-KFA
Pinnacle Master Models:
MH-45-KFA
MH-70T-KFA
MH-75T-KFA
MH-125T-KFA

PT-215T-KFA
MH-135T-KFA
MH-175T-KFA
MH-190T-KFA
MH-215T-KFA
Pinnacle Dayton/Grainger Models:
3VE50A (125K)
3VE50B (125K)
3VE51A (175K T)
3VE51B (175K T)
3VE52A (215K T)
3VE52B (215K T)
John Deere Models:
AC-175
AC175
​Dyna-Glo Models:
DFA45
DFA50
DFA65
DFA65T
DFA70
DFA70T
DFA75T
DuraHeat Models:
KFA45
KFA50DGD
KFA65, KFA65T-PRO, KFA65WH, KFA65WH-03
KFA75DGD, KFA75H, KFA75L
